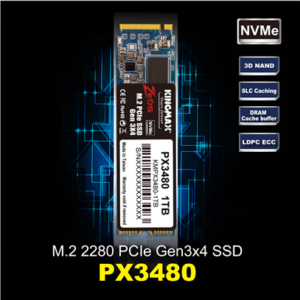

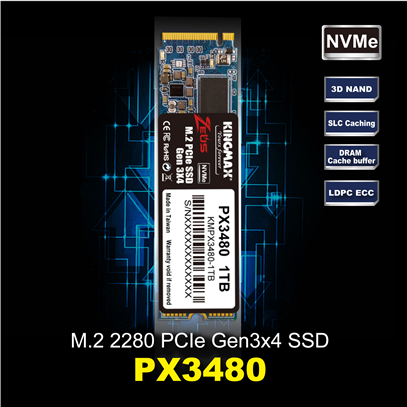

M.2 2280 PCIe NVMe SSD Gen3x4 PX3480

M.2 2280 PCIe NVMe SSD Gen3x4 PX3480

M.2 2280 PCIe NVMe Gen 3×4 SSD

256GB/ 512GB/ 1TB

Category:

Description

M.2 2280 PCIe Gen 3×4 PX3480 provides speeds up to 3400MB/s. It features accurate and ultra-high resolution images, high-speed processing data transmission and low latency, most suitable for consumers with massive engineering drawing requirements. Professional gamers can launch games from the massive selections in seconds, as it supports multiple screens for multi-tasking. PX3480 is also an ideal partner for enterprise users as its high performance storage solution improves work performance and enhances company competitiveness.

Feature

  • High speed 3D NAND synchronous flash
  • Great performance and reliability
  • M.2 M Key supported
  • SLC Caching and DRAM Cache buffer technology to enhance R/W performance

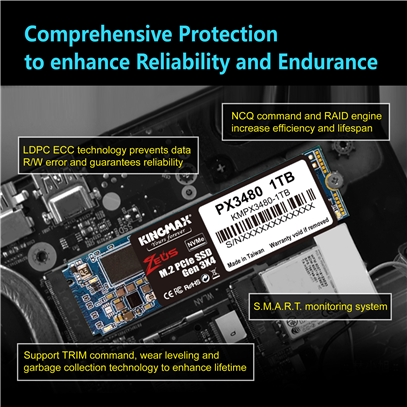

  • Advanced LDPC ECC Engine to prevent data errors (Low Density Parity Check Code)
  • Powerful wear leveling algorithm and Garbage Collection technology enhance lifespan
  • Support NCQ/ TRIM command
  • S.M.A.R.T.monitoring system

Specification

Model Name PX3480
Interface PCIe NVMe Gen 3×4
Support M.2 M key
Capacity 256GB 512GB 1TB
Performance (up to) 256GB 3000MB/s(R)  1000MB/s (W)
512GB 3400MB/s(R)  1950MB/s (W)
1TB 3400MB/s(R)  3000MB/s (W)
4K IOPs (up to) 256GB 180K (R)  230K (W)
512GB 350K (R)  430K (W)
1TB 550K (R)  550K (W)
Shock 1500G /0.5ms
MTBF/ TBW 2,000,000 hours
Dimension 22 mm (W) x 80 mm (L)
Weight 10g
Voltage 3.3V
Operating temperature 0~70°C
SLC Caching Yes
DRAM Cache Buffer Yes
Warranty 3 years

Gallery

FAQ

On Windows 7 / 8 / 8.1 / 10:
1. Open “My Computer.”
2. Right click on the drive, and select “Format.”
3. Choose NTFS in the File System dropdown box, and click “Start.”

TRIM is a command that enables operating system (such as Windows 7) to notify the SSD which data is no longer valid and can be safely deleted. Also, the TRIM works when the SSD is idle so that it can maximize the performance and endurance of a SSD.

ECC (Error correcting Code) automatically detects and corrects data corruption that occurs during reading, writing, storage, transmission or processing. This technology ensures a more complete and safer data transmission.

All storage products will display less than stated memory capacity on a computer. The discrepancy results from different algorithms.

On a computer, 1GB = 1024*1024*1024 = 1,073,741,824 (1024 is 2 to the power of 10, which is the algorithm used by the computer)

For a 32GB pen drive, the computer will calculate it as having capacity of 29.80GB.
32,000,000,000÷1,024÷1,024÷1,024 ≒ 14.90GB.

Also note that each Flash memory may possess innate variances because of its manufacturing process. KINGMAX will therefore adjust the available space on the pen drive to store necessary firmware configurations or system data. Please be assured that we do so at appropriate measures and that your pendrive has the normal capacity.
